Gamma Rays from Dark Matter at the Center of the Galaxy: Stronger Evidence

Evidence has been growing for the detection of dark matter more directly – at the center of the Milky Way Galaxy. Normally, we detect dark matter through its gravitational effects only, although there have been many attempts to detect it more directly, both through laboratory experiments here on Earth and from astronomical measurements. The Earthbound experiments are inconclusive at best, with some claims of detection being contradicted by other experiments.

But the evidence for astronomical detection of dark matter is growing. Expected sources include dwarf galaxies that are found near our Milky Way. The low luminosity of dwarf galaxies due to stars and supernovae can make it easier to extract evidence of dark matter due to its self annihilation.

Our own Milky Way Galaxy has a higher concentration of normal matter at the center, and is expected to have a higher concentration of dark matter as well. For the past 5 years or so, there has been evidence for possible dark matter annihilation at the Galactic Center. See

The mechanism is dark matter self-annihilation, resulting in the creation of decay products of ordinary matter and gamma rays (highly energetic photons). See one of my prior blogs at:

The leading dark matter candidate is some sort of WIMP (weakly interacting massive particle). WIMPs interact only via gravity and perhaps the weak nuclear force. WIMP self-annihilations can produce quarks, neutrinos, gamma rays and other ordinary matter particles.

There is a known gamma ray signal in the Galactic Center (the center of our Milky Way) that extends to 5 degrees away from the center, corresponding to roughly a kiloparsec in extent (a kiloparsec is 3260 light-years, and our Sun is 8 kiloparsecs from the Center). The major alternatives for this signal appear to be dark matter annihilation, cosmic ray interactions with interstellar gas, or emission from rapidly rotating neutron stars (millisecond pulsars).

A recent paper from T. Daylan and co-authors from Harvard, MIT, Princeton, the University of Chicago and the Fermi Laboratory is titled “The Characterization of the Gamma-Ray Signal from the Central Milky Way: A Compelling Case for Annihilating Dark Matter”. They have reanalyzed observations from the Fermi Gamma Ray Space Telescope and confirmed that the distribution of gamma rays in the Galactic Center (GC) is largely spherically symmetric and extended. This spatial distribution likely rules out neutron stars as the source, since these are preferentially found in the galactic disk.

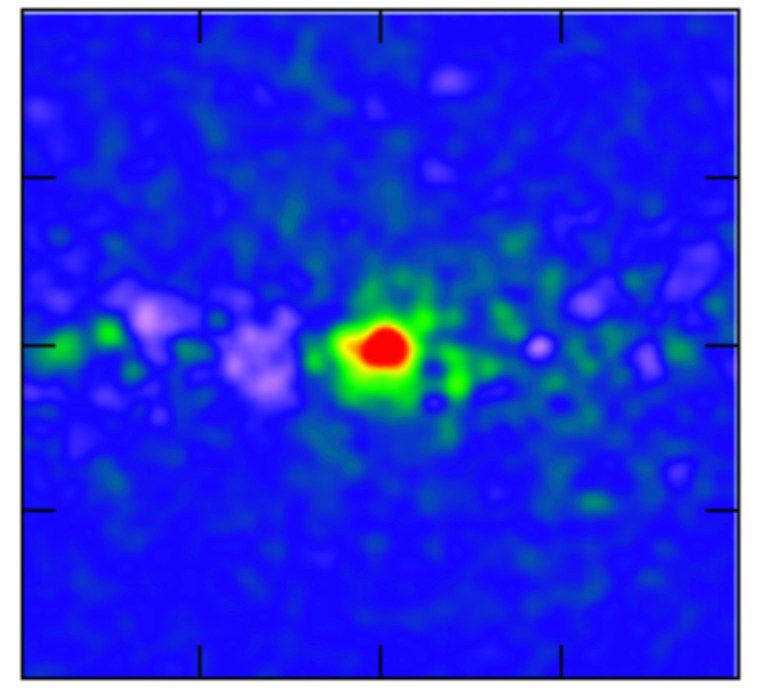

1-3 GeV residual gamma ray image. From Fig. 10 of T. Daylan et al., this is corrected for galactic diffuse emission and has point sources subtracted. The image extends over a 10◦ by 10◦ region.

Dark matter, on the other hand, would be expected to have a roughly spherical distribution around the GC. Interstellar gas is also largely confined to the galactic disk, so this explanation is disfavored. Their study also confirms that the emission extends beyond the GC to what is known as the Inner Galaxy, further ruling out the two alternatives other than dark matter annihilation. The emission falls off in intensity away from the GC, in a manner consistent with a spherically symmetric dark matter density distribution that is in accordance with a Navarro-Frenk-White profile often used successfully in modeling dark matter halos. No evidence is found for any significant deviation from spherical symmetry for the GC and Inner Galaxy components, the latter extending out to around 2 kiloparsecs.

There are various possible annihilation channels for dark matter and the authors’ analysis appears to favor a dominant channel to primarily b quarks (and b antiquarks). In this scenario the WIMP mass appears to lie in the range of 36 to 51 GeV (by comparison a proton or neutron mass is about .94 GeV). Recall that there are 6 types of quarks, and protons and neutrons are composed of u and d (up and down) quarks. The others are b, t, c, s (bottom, top, charm and strange). The quarks other than u and d are unstable and will decay to u and d.

The spectral (energy) distribution peaks at gamma ray energies of around 1 to 3 GeV and is a good fit to the predictions for annihilation to a b quark pair (b and anti-b). In addition, the cross-section for annihilation calculated from the gamma ray intensity is consistent with that expected from the required rate of thermal production of dark matter particles in the early universe, of order 10^-26 cm^3/sec (actually a value of the cross-section multiplied by the average velocity). The observed dark matter abundance freezes out from thermal equilibrium in the early universe as it expanded and cooled, and implies a cross section of that order.

There is also the possibility for other decay channels, including decays to u, d, c, s and t quarks and to tau lepton particles. The spectral shapes disfavor decays to tau leptons and u, d quarks in particular. After decays to b quarks, the c (charm) and s (strange) quark channels are the most likely.  Either a c or s quark channel implies somewhat lower WIMP masses, around the 20 to 40 GeV range. Annihilations to other fermions appear less likely.

In summary, quoting from their paper:

“This signal consists of a very large number of events, and has been detected with overwhelming statistical significance. The the excess consists of ∼ 10,000 gamma rays per square meter, per year above 1 GeV (from within 10◦ of the Galactic Center). Not only does this large number of events enable us to conclude with confidence that the signal is present, but it also allows us to determine its spectrum and morphology in some detail. And as shown, the measured spectrum, angular distribution, and normalization of this emission does indeed match well with that expected from annihilating dark matter particles.”

“There is no reason to expect that any diffuse astrophysical emission processes would exhibit either the spectrum or the morphology of the observed signal. In particular, the spherical symmetry of the observed emission with respect to the Galactic Center does not trace any combination of astrophysical components (i.e. radiation, gas, dust, star formation, etc.), but does follow the square of the anticipated dark matter density.”

There are also possible detections, marginally significant, of gamma ray emission due to dark matter in nearby dwarf galaxies, and in the direction of the Virgo cluster. We look forward to additional observations and theoretical work to confirm dark matter annihilation signals in our own galaxy and nearby galaxies.
