The Curiously Tangential Dwarf Galaxies

There are some 50 or so satellite galaxies around the Milky Way, the most famous of which are the Magellanic Clouds. Somewhat incredibly, half of these have been discovered within the last 2 years, since they are small, faint, and have low surface brightness. The image below shows only the well known ‘classical’ satellites. The satellites are categorized primarily as dwarf spheroidals, and most are low in gas content.

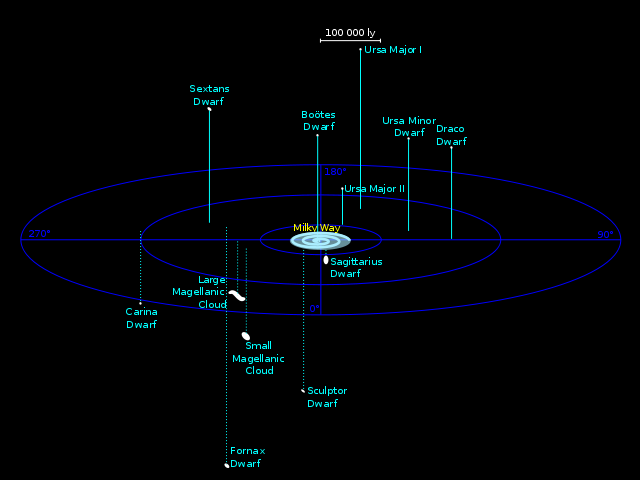

Image credit: Wikipedia, Richard Powell, Creative Commons Attribution-Share Alike 2.5 Generic

“Satellite galaxies that orbit from 1,000 ly (310 pc) of the edge of the disc of the Milky Way Galaxy to the edge of the dark matter halo of the Milky Way at 980×103 ly (300 kpc) from the center of the galaxy, are generally depleted in hydrogen gas compared to those that orbit more distantly. The reason is the dense hot gas halo of the Milky Way, which strips cold gas from the satellites. Satellites beyond that region still retain copious quantities of gas.” – Wikipedia article

In a recent paper “The tangential velocity excess of the Milky Way satellites“, Marius Cautun and Carlos Frenk find that a sample of satellites (drawn from those known for more than a few years) deviates from the predictions of the canonical Λ – Cold Dark Matter (ΛCDMcosmology. (Λ refers to the cosmological constant, or dark energy).

“We estimate the systemic orbital kinematics of the Milky Way classical satellites and compare them with predictions from the Λ cold dark matter (ΛCDM) model derived from a semi-analytical galaxy formation model applied to high resolution cosmological N-body simulations. We find that the Galactic satellite system is atypical of ΛCDM systems. The subset of 10 Galactic satellites with proper motion measurements has a velocity anisotropy, β = −2.2 ± 0.4, that lies in the 2.9% tail of the ΛCDM distribution. Individually, the Milky Way satellites have radial velocities that are lower than expected for their proper motions, with 9 out of the 10 having at most 20% of their orbital kinetic energy invested in radial motion. Such extreme values are expected in only 1.5% of ΛCDM satellites systems. This tangential motion excess is unrelated to the existence of a Galactic ‘disc of satellites’. We present theoretical predictions for larger satellite samples that may become available as more proper motion measurements are obtained.”

Radial velocities are easy, we get those from redshifts. Tangential velocities are much tougher, but can be obtained from relatively nearby objects by measuring their proper motions. That is, how much do their apparent positions change on the sky after many years have passed. It’s all the more tough when your object is not a point object, but a fuzzy galaxy!

For a ‘random’ distribution of velocities in accordance with ΛCDM cosmology, one would expect the two components of tangential velocity to be each roughly equal on average to the radial component, and thus 2/3 of the kinetic energy would be tangential and 1/3 would be radial. But rather than 33% of the kinetic energy being in radial motion, they find that the Galactic satellites have only about 1/2 that amount in radial, and over 80% of their kinetic energy in tangential motion.

Formally, they find a negative velocity anistropy, β, which as it is defined in practice, should be around zero for a ΛCDM distribution. They find that β differs from zero by 5 standard deviations.

One possible explanation is that the dwarf galaxies are mainly at their perigee or apogee points of their orbits. But why should this be the case? Another explanation: “alternatively indicate that the Galactic satellites have orbits that are, on average, closer to circular than is typical in ΛCDM. This would mean that MW halo mass estimates based on satellite orbits (e.g. Barber et al. 2014) are biased low.” Perhaps the Milky Way halo mass estimate is too low. Or, they also posit, without elaborating, do the excess tangential motions “indicate new physics in the dark sector”?

So one speculation is that the tangential motions are reflective of emergent gravity class of theories, for which dark matter is not required, but for which the gravitational force changes (strengthens) at low accelerations, of order c \cdot H, where H is the Hubble parameter, and the value works out to be around 2 centimeters per second per year. And it does this in a way that ‘spoofs’ the existence and gravitational affect of dark matter. This is also what is argued for in Modified Newtonian Dynamics, which is an empirical observation about galaxy light curves.

In the next article of this series we will look at Erik Verlinde’s emergent gravity proposal, which he has just enhanced, and will attempt to explain it as best we can. If you want to prepare yourself for this challenging adventure, first read his 2011 paper, “On the Origin of Gravity and the Laws of Newton”.


Dark Sector Experiments

A dark energy experiment was recently searching for a so-called scalar “chameleon field”. Chameleon particles could be an explanation for dark energy. They would have to make the field strength vanishingly small when they are in regions of significant matter density, coupling to matter more weakly than does gravity. But in low-density regions, say between the galaxies, the chameleon particle would exert a long range force.

Chameleons can decay to photons, so that provides a way to detect them, if they actually exist.

Chameleon particles were originally suggested by Justin Khoury of the University of Pennsylvania and another physicist around 2003. Now Khoury and Holger Muller and collaborators at UC Berkeley have performed an experiment which pushed millions of cesium atoms toward an aluminum sphere in a vacuum chamber. By changing the orientation in which the experiment is performed, the researchers can correct for the effects of gravity and compare the putative chameleon field strength to gravity.

If there were a chameleon field, then the cesium atoms should accelerate at different rates depending on the orientation, but no difference was found. The level of precision of this experiment is such that only chameleons that interact very strongly with matter have been ruled out. The team is looking to increase the precision of the experiment by additional orders of magnitude.

For now the simplest explanation for dark energy is the cosmological constant (or energy of the vacuum) as Einstein proposed almost 100 years ago.


The Large Underground Xenon experiment to detect dark matter (CC BY 3.0)

Dark matter search broadens

“Dark radiation” has been hypothesized for some time by some physicists. In this scenario there would be a “dark electromagnetic” force and dark matter particles could annihilate into dark photons or other dark sector particles when two dark matter particles collide with one another. This would happen infrequently, since dark matter is much more diffusely distributed than ordinary matter.

Ordinary matter clumps since it undergoes frictional and ordinary radiation processes, emitting photons. This allows it to cool it off and to become more dense under mutual gravitational forces. Dark matter rarely decays or interacts, and does not interact electromagnetically, thus no friction or ordinary radiation occurs. Essentially dark matter helps ordinary matter clump together initially since it dominates on the large scales, but on small scales ordinary matter will be dominant in certain regions. Thus the density of dark matter in the solar system is very low.

Earthbound dark matter detectors have focused on direct interaction of dark matter with atomic nuclei for the signal. John Cherry and co-authors have suggested that dark matter may not interact directly, but rather it first annihilates to light particles, which then scatter on the atomic nuclei used as targets in the direct detection experiments.

So in this scenario dark matter particles annihilate when they encounter each other, producing dark radiation, and then the dark radiation can be detected by currently existing direct detection experiments. If this is the main channel for detection, then much lower mass dark matter particles can be observed, down to of order 10 MeV (million electron-Volts), whereas current direct detection is focused on masses of several GeV (billion electron-Volts) to 100 GeV or more. (The proton rest mass is about 1 GeV)

A Nobel Prize awaits, most likely, the first unambiguous direct detection of either dark matter, or dark energy, if it is even possible.


https://en.wikipedia.org/wiki/Chameleon_particle – Chameleon particle

http://news.sciencemag.org/physics/2015/08/tiny-fountain-atoms-sparks-big-insights-dark-energy?rss=1 – dark energy experiment

http://www.preposterousuniverse.com/blog/2008/10/29/dark-photons/ – dark photons

http://scitechdaily.com/physicists-work-on-new-approach-to-detect-dark-matter/ – article on detecting dark matter generated dark radiation

http://journals.aps.org/prl/abstract/10.1103/PhysRevLett.114.231303 – Cherry et al. paper in Physical Review Letters

Planck 2015 Constraints on Dark Energy and Inflation

The European Space Agency’s Planck satellite gathered data for over 4 years, and a series of 28 papers releasing the results and evaluating constraints on cosmological models have been recently released. In general, the Planck mission’s complete results confirm the canonical cosmological model, known as Lambda Cold Dark Matter, or ΛCDM. In approximate percentage terms the Planck 2015 results indicate 69% dark energy, 26% dark matter, and 5% ordinary matter as the mass-energy components of the universe (see this earlier blog:


Dark Energy

We know that dark energy is the dominant force in the universe, comprising 69% of the total energy content. And it exerts a negative pressure causing the expansion to continuously speed up. The universe is not only expanding, but the expansion is even accelerating! What dark energy is we do not know, but the simplest explanation is that it is the energy of empty space, of the vacuum. Significant departures from this simple model are not supported by observations.

The dark energy equation of state is the relation between the pressure exerted by dark energy and its energy density. Planck satellite measurements are able to constrain the dark energy equation of state significantly. Consistent with earlier measurements of this parameter, which is usually denoted as w, the Planck Consortium has determined that w = -1 to within 4 or 5 percent (95% confidence).

According to the Planck Consortium, “By combining the Planck TT+lowP+lensing data with other astrophysical data, including the JLA supernovae, the equation of state for dark energy is constrained to w = −1.006 ± 0.045 and is therefore compatible with a cosmological constant, assumed in the base ΛCDM cosmology.”

A value of -1 for w corresponds to a simple Cosmological constant model with a single parameter Λ  that is the present-day energy density of empty space, the vacuum. The Λ value measured to be 0.69 is normalized to the critical mass-energy density. Since the vacuum is permeated by various fields, its energy density is non-zero. (The critical mass-energy density is that which results in a topologically flat space-time for the universe; it is the equivalent of 5.2 proton masses per cubic meter.)

Such a model has a negative pressure, which leads to the accelerated expansion that has been observed for the universe; this acceleration was first discovered in 1998 by two teams using certain supernova as standard candle distance indicators, and measuring their luminosity as a function of redshift distance.

Modified gravity

The phrase modified gravity refers to models that depart from general relativity. To date, general relativity has passed every test thrown at it, on scales from the Earth to the universe as a whole. The Planck Consortium has also explored a number of modified gravity models with extensions to general relativity. They are able to tighten the restrictions on such models, and find that overall there is no need for modifications to general relativity to explain the data from the Planck satellite.

Primordial density fluctuations

The Planck data are consistent with a model of primordial density fluctuations that is close to, but not precisely, scale invariant. These are the fluctuations which gave rise to overdensities in dark matter and ordinary matter that eventually collapsed to form galaxies and the observed large scale structure of the universe.

The concept is that the spectrum of density fluctuations is a simple power law of the form

P(k) ∝ k**(ns−1),

where k is the wave number (the inverse of the wavelength scale). The Planck observations are well fit by such a power law assumption. The measured spectral index of the perturbations has a slight tilt away from 1, with the existence of the tilt being valid to more than 5 standard deviations of accuracy.

ns = 0.9677 ± 0.0060

The existence and amount of this tilt in the spectral index has implications for inflationary models.


The Planck Consortium authors have evaluated a wide range of potential inflationary models against the data products, including the following categories:

  • Power law
  • Hilltop
  • Natural
  • D-brane
  • Exponential
  • Spontaneously broken supersymmetry
  • Alpha attractors
  • Non-minimally coupled

Figure 12 from Constraints on InflationFigure 12 from Planck 2015 results XX Constraints on Inflation. The Planck 2015 data constraints are shown with the red and blue contours. Steeper models with  V ~ φ³ or V ~ φ² appear ruled out, whereas R² inflation looks quite attractive.

Their results appear to rule out some of these, although many models remain consistent with the data. Power law models with indices greater or equal to 2 appear to be ruled out. Simple slow roll models such as R² inflation, which is actually the first inflationary model proposed 35 years ago, appears more favored than others. Brane inflation and exponential inflation are also good fits to the data. Again, many other models still remain statistically consistent with the data.

Simple models with a few parameters characterizing the inflation suffice:

“Firstly, under the assumption that the inflaton* potential is smooth over the observable range, we showed that the simplest parametric forms (involving only three free parameters including the amplitude V (φ∗ ), no deviation from slow roll, and nearly power-law primordial spectra) are sufficient to explain the data. No high-order derivatives or deviations from slow roll are required.”

* The inflaton is the name cosmologists give to the inflation field

“Among the models considered using this approach, the R2 inflationary model proposed by Starobinsky (1980) is the most preferred. Due to its high tensor- to-scalar ratio, the quadratic model is now strongly disfavoured with respect to R² inflation for Planck TT+lowP in combination with BAO data. By combining with the BKP likelihood, this trend is confirmed, and natural inflation is also disfavoured.”

Isocurvature and tensor components

They also evaluate whether the cosmological perturbations are purely adiabatic, or include an additional isocurvature component as well. They find that an isocurvature component would be small, less than 2% of the overall perturbation strength. A single scalar inflaton field with adiabatic perturbations is sufficient to explain the Planck data.

They find that the tensor-to-scalar ratio is less than 9%, which again rules out or constrains certain models of inflation.


The simplest LambdaCDM model continues to be quite robust, with the dark energy taking the form of a simple cosmological constant. It’s interesting that one of the oldest and simplest models for inflation, characterized by a power law relating the potential to the inflaton amplitude, and dating from 35 years ago, is favored by the latest Planck results. A value for the power law index of less than 2 is favored. All things being equal, Occam’s razor should lead us to prefer this sort of simple model for the universe’s early history. Models with slow-roll evolution throughout the inflationary epoch appear to be sufficient.

The universe started simply, but has become highly structured and complex through various evolutionary processes.


Planck Consortium 2015 papers are at http://www.cosmos.esa.int/web/planck/publications – This site links to the 28 papers for the 2015 results, as well as earlier publications. Especially relevant are these – XIII Cosmological parameters, XIV Dark energy and modified gravity, and XX Constraints on inflation.

Dark Matter Bridge Discovered

A team of astronomers claims to have detected an enormous bridge or filament of dark matter, with a mass estimated to be of order 100 trillion solar masses, and connecting two clusters of galaxies. The two clusters, known as Abell 222 and Abell 223, are about 2.8 billion light-years away and separated from one another by 400 million light-years. Each cluster has around 150 galaxies; actually one of the pair is itself a double cluster.

Clusters of galaxies are gravitationally bound collections of hundreds to a thousand or more galaxies. Often a cluster will be found in the vicinity of other clusters to which it is also gravitationally bound. The universe as a whole is gravitationally unbound – the matter, including the dark matter – is insufficient to stop the continued expansion, which is driven to acceleration in fact, by dark energy.

Dark matter bridge

Figure: Subaru telescope optical photo with mass density shown in blue and statistical significance contours superimposed. In the filament area found near the center of the image, the contours indicate four standard deviations of significance in the detection of dark matter. The cluster Abell 222 is in the south, and Abell 223 is the double cluster in the north of the image. The distance between the two clusters is about 14 arc-minutes, or about ½ the apparent size of the Moon.

Dark matter was originally called “missing matter”, and was first posited by Fritz Zwicky (http://en.wikipedia.org/wiki/Fritz_Zwicky) in the 1930s because of his studies of the kinematics of galaxies and galaxy clusters. He measured the velocities of galaxies moving around inside a cluster and found they were significantly greater than expected from the amount of ordinary matter seen in the galaxies themselves. This implied there was more matter than seen in galaxies because the velocities of the galaxies would be determined by the total gravitational field in a cluster, and the questions have been where is, and what is, the “missing matter” inferred by the gravitational effects. X-ray emission has been detected from most clusters of galaxies, and this is due to an additional component of matter outside of galaxies, namely hot gas between galaxies. But it is still insufficient to explain the total mass of clusters as revealed by both the galaxy velocities and the temperature of the hot gas itself, since both are a reflection of the gravitational field in the cluster.

Dark matter is ubiquitous, found on all scales and is generally less clumped than ordinary matter, so it is not surprising that significant dark matter would be found between two associated galaxy clusters. In fact the researchers in this study point out that “It is a firm prediction of the concordance Cold Dark Matter cosmological model that galaxy clusters live at the intersection of large-scale structure filaments.”

The technique used to map the dark matter is gravitational lensing, which is a result of general relativity. The gravitational lensing effect is well established; it has been seen in many clusters of galaxies to date. In gravitational lensing, light is deflected away from a straight-line path by matter in its vicinity.

In this case the gravitational field of the dark matter filament and the galaxy clusters deflect light passing nearby. The image of a background galaxy located behind the cluster will be distorted as the light moves through or nearby the foreground cluster. The amount of distortion depends on the mass of the cluster (or dark matter bridge) and how near the line of sight passes to the cluster center.

There is also a well-detected bridge of ordinary matter in the form of hot X-ray emitting gas connecting the two clusters and in the same location as the newly discovered dark matter bridge.  The scientists used observations from the XMM-Newton satellite to map the X-ray emission from the two clusters Abell 222 and Abell 223 and the hot gas bridge connecting them. Because of the strong gravitational fields of galaxy clusters, the gas interior to galaxy clusters (but exterior to individual galaxies within the cluster) is heated to very high temperatures by frictional processes, resulting in thermal X-ray emission from the clusters.

The research team, led by Jörg Dietrich at the University of Michigan, then performed a gravitational lensing analysis, focusing on the location of the bridge as determined from the X-ray observations. The gravitational lensing work is based on optical observations obtained from the Subaru telescope (operated by the Japanese government, but located on the Big Island of Hawaii) to map the total matter density profile around and between the two clusters. This method detects the sum of dark matter and ordinary matter.

They analyzed the detailed orientations and shapes of over forty thousand background galaxies observable behind the two clusters and the bridge. This work allowed them to determine the contours of the dark matter distribution. They state a 98% confidence in the existence of a bridge or filament dominated by dark matter.

The amount of dark matter is shown to be much larger than that of ordinary matter, representing over 90% of the total in the filament region, so the gravitational lensing effects are primarily due to the dark matter. Less than 9% of the mass in the filament is in the form of hot gas (ordinary matter). The estimated total mass in the filament is about 1/3 of the mass of either of the galaxy clusters, each of which is also dominated by dark matter.

Observations of galaxy distributions show that galaxies are found in groups, clusters, and filaments connecting regions of galaxy concentration. Cosmological simulations of the evolution of the universe on supercomputers indicate that the distribution of dark matter should have a filamentary structure as well. So although the result is in many ways not surprising, it represents the first detection of such a structure to date.



http://ns.umich.edu/new/releases/20623-dark-matter-scaffolding-of-universe-detected-for-the-first-time – press release from the University of Michigan

http://www.gizmag.com/dark-matter-filaments-found/23281/ “Dark matter filaments detected for the first time”

J. Dietrich et al. 2012 http://arxiv.org/abs/1207.0809 “A filament of dark matter between two clusters of galaxies”

Foreword, by Rich Brueckner

“Through our eyes, the universe is perceiving itself. Through our ears, the universe is listening to its harmonies. We are the witnesses through which the universe becomes conscious of its glory, of its magnificence.”

— Alan Watts

We all know of the Big Bang, how our universe came to be in a massive explosion, seemingly starting from nothingness. And for those who study cosmology, further understanding requires us to define the dark energies that somehow endowed our world with order.

Now, we haven’t observed dark energy, dark matter, and the secrets of dark gravity directly, but we do see their effects. As we learn in this book, without them, the universe would not have formed in a way that could have spawned intelligent life.

As a writer, I am intrigued by these dark energies because they imply a backstory–phenomena that happened first that led to this outcome. So in this way, dark energies seem to me to be metaphors of science. Like the stories of Genesis and Adam and Eve, what they really represent is a deeper truth.

In this book, Dr. Perrenod does a wonderful job of explaining the origins of the universe in way that is accessible to the layman. When you want to understand how the universe came to be, you ask an astrophysicist. But when you really want to know why, I think you have to start by asking yourself some questions. Try a thought experiment.

Put yourself in the place of a Universal Mind before the Big Bang. If you really wanted to understand yourself, you would need to have something intelligent outside of yourself that could experience that which is you. Not to get metaphysical here, but if we were at the scene of a crime, what I’d be suggesting here is motive.

Thanks to modern physics and cosmology, we no longer live in a universe where dark forces lurk far beyond our capacity for comprehension. I believe that, through the works of Stephen Perrenod and others, we will come to that knowing. But even as we look out to the stars, I think it begins with understanding that not only are we within the universe, but the universe is within us.

Rich Brueckner is President of insideHPC.com

Dark Matter, Dark Energy, Dark Gravity

Enabling a Universe that Supports Intelligent Life

Author: Stephen Perrenod

An e-book now available through:

We are immersed in a sea of light emanating from ordinary matter that is floating, as it were, on an ocean of dark matter. The dark matter itself floats on the dark energy of the particle vacuum that in turn is in embedded within the scaffolding of space-time – which is shaped by the dark gravity effects from all matter and energy.

Table of Contents

  • Dedication
  • Foreword (by Rich Brueckner)
  • Preface and Acknowledgements
  1. Scale of the Universe
  2. The Big Bang Model
  3. Inflation
  4. Dark Matter
  5. Dark Energy
  6. Dark Gravity
  7. Future of the Universe
  • Glossary
  • References, Suggested Reading and Viewing
  • About the Author
